Place of Origin:
China
브랜드 이름:
Hengyang
인증:
ISO9001
Model Number:
HYB-01

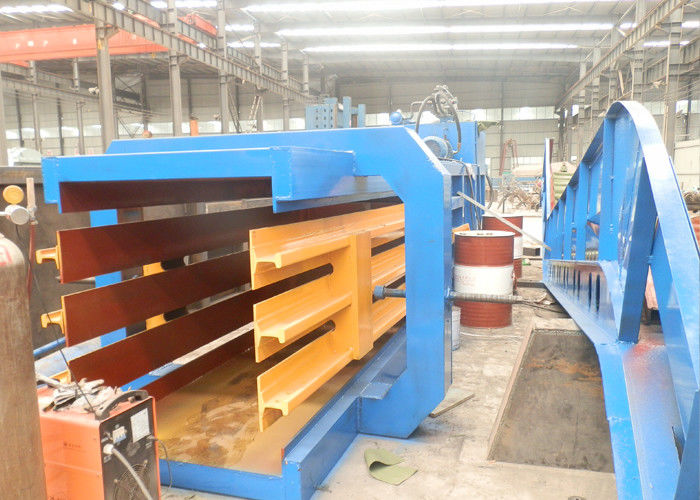

Hydraulic Waste Material Balers, ranges from 40 tons to 120 tons pressure force, has a processing power of up to 10 tons per hour. It is perfect for recycling shed handling large daily amount of soft waste such as cardboard, paper, plastic film, natural fiber, packing materials, etc. It combines advanced computer controlled operations with reliable hydraulics and seamless heavy duty frame construction.
Application:
Applicable for baling & belting of loose materials like scrap paper (cardboard, newspaper), plastic scraps(PET bottle, plastic film or crates) & straw, hay, etc.
Ideally suited to recycling companies, manufacturing plants, printers & convertors , warehouse and distribution , manufactures of packaging ......
Technical details:
| Model | Pressure | Packing size | Feed opening size | Bale density | Bale line | capacity | Power | weight |
| DSL-40 | 40ton | 720*720*300-1600mm | 1000*660mm | 300kg/m3 | 4line | 1-3T/h | 18-22kw/34-30HP | 8t |
| DSL-60 | 60Ton | 750*750*300-1800mm | 1200*690mm | 350Kg/m3 | 4Line | 2-4T/h | 22-30KW/30-40HP | 10T |
| DSL-80 | 80ton | 1100*800*300-2000mm | 2000*760mm | 400Kg/m3 | 4Line | 4-7T/h | 30-45KW/40-60HP | 13T |
| DSL-100 | 100ton | 1100*1100*300-2100mm | 1800*1000mm | 500Kg/m3 | 5Line | 6-8T/h | 45-60KW/60-80HP | 17T |
| DSL-120 | 120ton | 1100*1100*300-2100mm | 2000*1060mm | 550Kg/m3 | 5Line | 8-10T/h | 60-75KW/80-100HP | 20T |
| DSL-160 | 160Ton | 1100*1100*300-2100mm | 2400*1060mm | 600Kg/m3 | 5Line | 12-15T/h | 75-90KW/100-120HP | 23T |
