원래 장소:
중국
브랜드 이름:
Hengyang
인증:
ISO9001
모델 번호:
HC-624
| Attribute | Value |
|---|---|
| Name | Air jet mills |
| Application | Ultrafine powder |
| Capacity | 200-1500kg/h |
| Color | Customize |
| OEM | Accept |

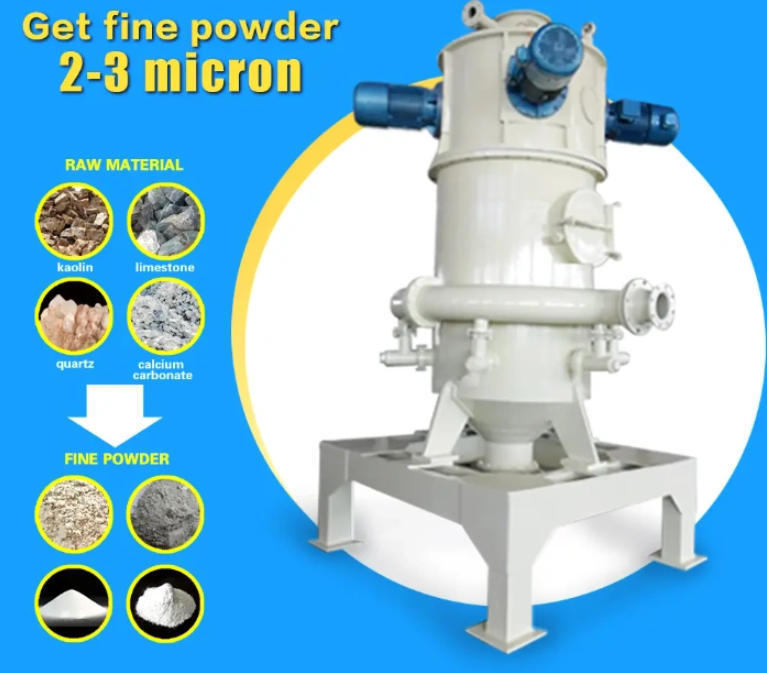

Air jet mills are one of the main ultrafine powder grinding equipment. They are ideal for fine, high-purity, and high-value materials. They can produce powders with d97 = 3-5μm. Output ranges from dozens of kilograms to several tons per hour.
Used for:
Air Classifier mills are widely used in the non-metallic mineral industry. Commonly used for:
Typical product fineness reaches d97 = 10μm (1250 mesh). With high-performance classifiers, products of d97 = 5-7μm can be produced.
| Parameter/Model | MQW03 | MQW06 | MQW010 | MQW20 | MQW30 | MQW40 | MQW60 | MQW80 | MQW120 | MQW160 | MQW240 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Feeding Size(mm) | <1 | <2 | <2 | <3 | <3 | <3 | <3 | <3 | <3 | <3 | <3 |
| Production Capacity(kg/h) | 0.3~10 | 10~150 | 20~300 | 40~600 | 100~900 | 200~1200 | 500~2000 | 800~3000 | 1500~6000 | 2000~8000 | 4000~12000 |
| Particle size(D97:μm) | 3~45 | 3~45 | 3~45 | 3~45 | 3~45 | 3~45 | 3~45 | 3~45 | 3~45 | 3~45 | 3~45 |
| Classifier motor (kw) | 2.2 | 3 | 5.5/7.5 | 7.5/11 | 11/15 | 15/7.5x3 | 7.5x3 | 11x3 | 15x3 | 15x4 | 15x6 |
| Air consumption(m³/min) | 3 | 6 | 10 | 20 | 30 | 40 | 60 | 80 | 120 | 160 | 240 |
| Air pressure(Mpa) | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 | 0.6~1 |
