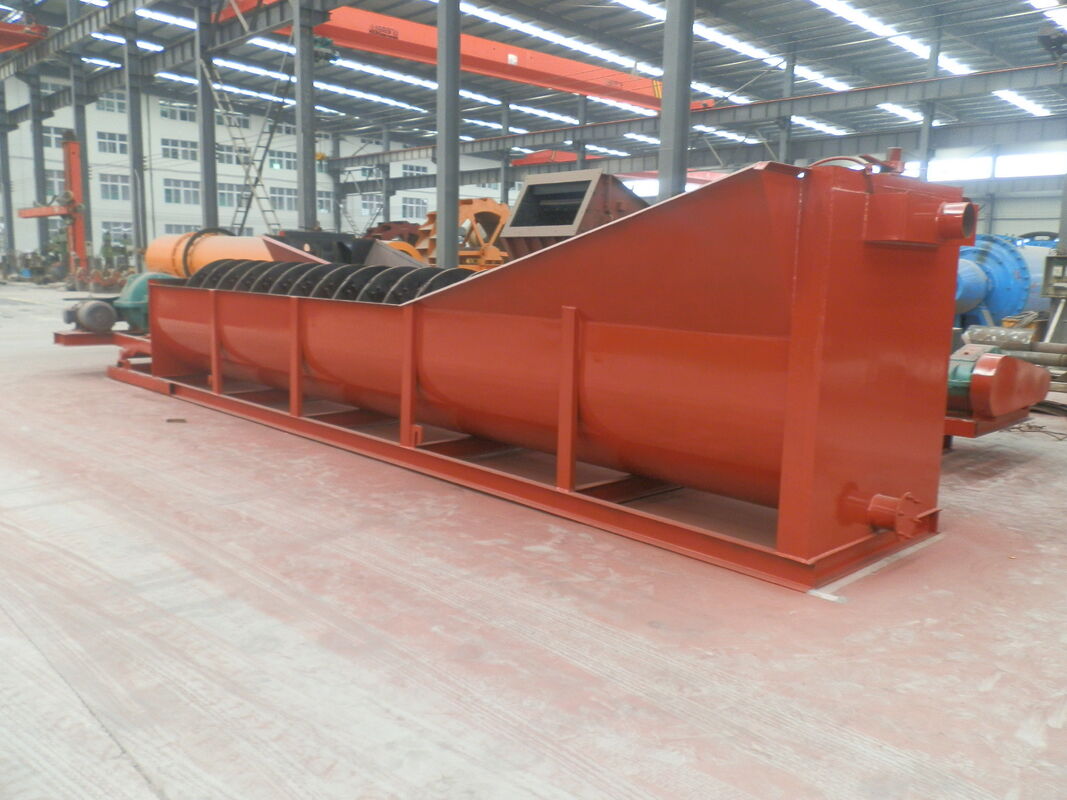

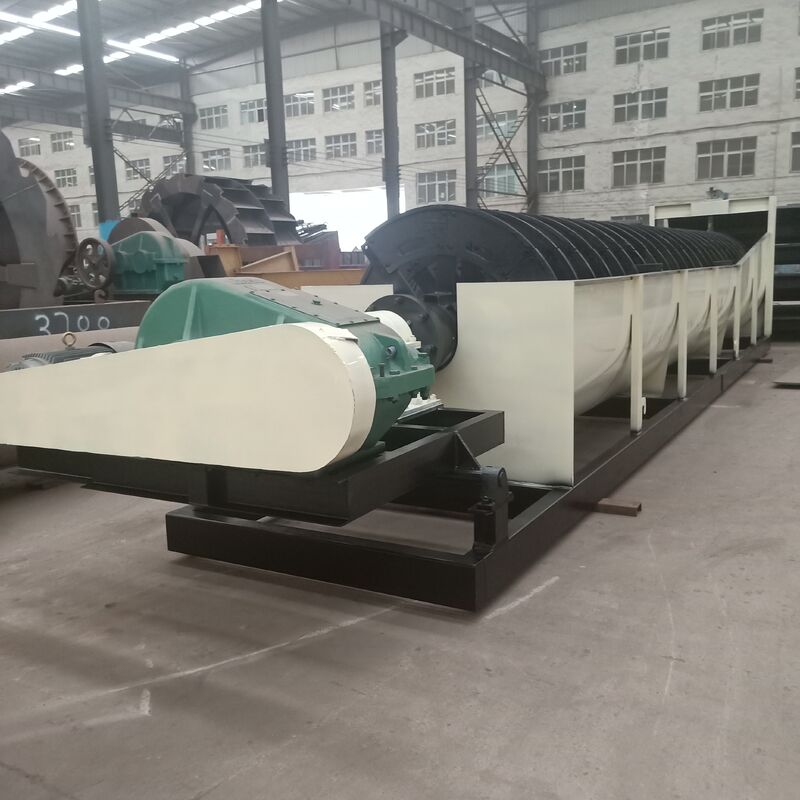

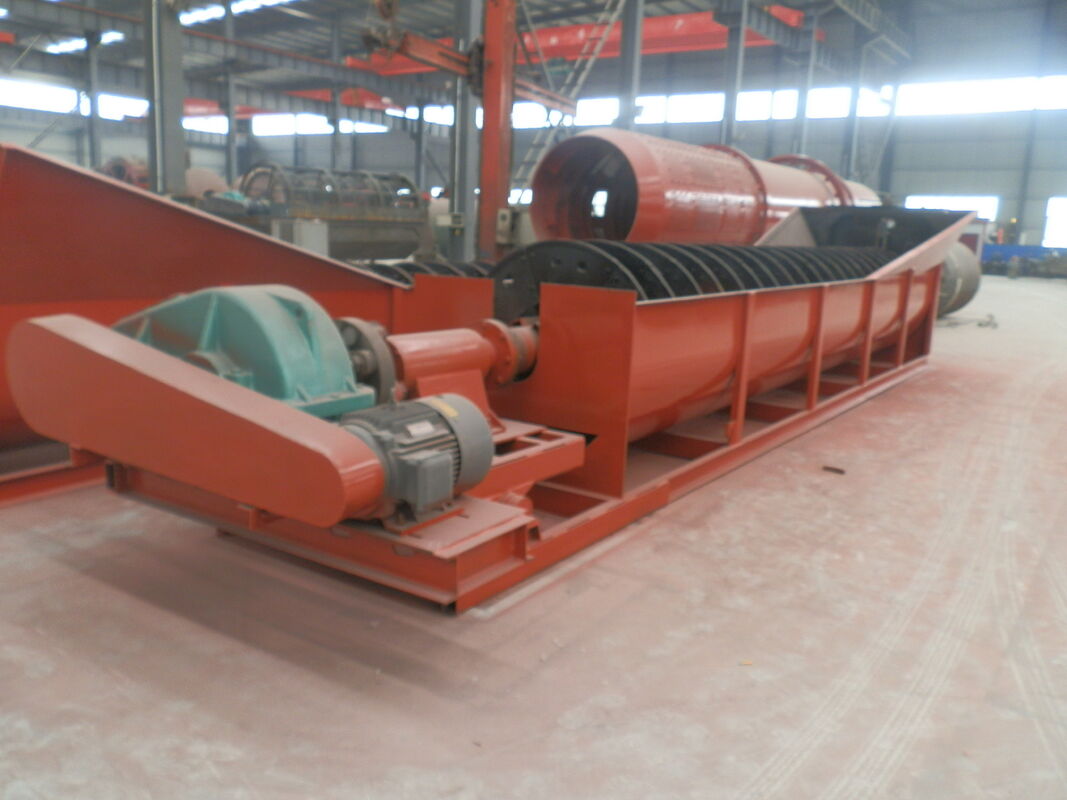

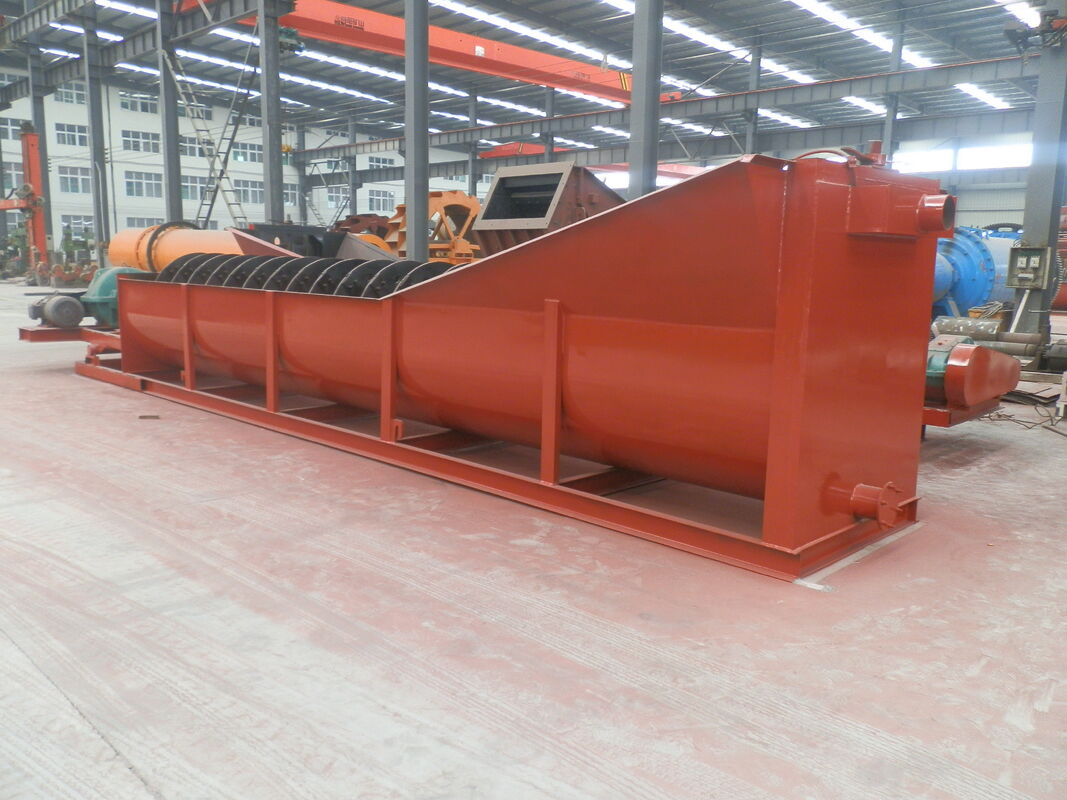

Name: Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: XL 시리즈
Price: 23,350.00 USD
Availability: InStock

집 > 상품 > Stone & Sand Washing Line >

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

Spiral Sand Washing Machinery

400 t/h Spiral Sand Washing Machinery

원래 장소:

중국

브랜드 이름:

hengyang

인증:

ISO9001

모델 번호:

XL 시리즈

저희와 연락

인용 을 요청 하십시오

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

제품 세부 정보

색상:

사용자 정의

기능:

모래 및 골재 세척

나선:

하나의

용량:

20-400t/h

OEM:

수용하다

지불 및 배송 조건

최소 주문 수량

가격

11000-35700USD/set

포장 세부 사항

부정

배달 시간

15-20일

지불 조건

T/T,L/C

공급 능력

300 세트/월

Spiral Sand Washing Machinery with 20-400 t/h Capacity 95%+ Cleaning Rate and Single or Double Spiral Options

가장 좋은 가격 을 구하라

Customize PU Spiral Sand Washing Machinery

가장 좋은 가격 을 구하라

WET PROCESSING SOLUTIONS Sand Washing Line FOR SAND & GRAVEL

가장 좋은 가격 을 구하라

Insutrial Use Rotary Screen Capacity 1-250t/h

가장 좋은 가격 을 구하라

저희와 연락

지금 연락하세요

제품 설명

Spiral Sand & Aggregate Washing Machinery

Spiral Sand & Aggregate Washing Machinery, also known as screw sand washer, is a sand washing equipment used for cleaning and grading sand and other minerals. It is commonly used for cleaning, dehydrating and grading materials in mineral processing, construction, sand and gravel, and aggregate plants.

This sand washing machine effectively removes dirt, dust and other impurities on the surface of sand and gravel through the rotation of the internal spiral device, while simultaneously destroying the water vapor layer covering the surface of sand particles to facilitate subsequent dehydration.

Key Features:

High cleaning rate with 95%+ cleaning degree
Large processing capacity with low energy consumption
Processes various materials including river sand, machine-made sand, quartz sand, and iron ore
Finished sand contains ≤3% mud content, meeting construction standards
Available in single or double spiral configurations

Working Principle

The Spiral Sand & Aggregate Washing Machinery is mainly composed of weir plate, shell, spiral body, reducer and motor. Sand and gravel materials enter the washing tank through the feed trough. Driven by the impeller, the soil in the sand and gravel is fully mixed with water.

Through the rotation of the spiral device, the sand and gravel particles with heavy specific gravity sink to the bottom of the storage tank, and the excess water is removed during the upward movement. A strong water flow is formed by adding water to take away impurities and foreign objects with light specific gravity. The clean sand and gravel are taken away by the blades and discharged from the overflow port, completing the cleaning and dehydration process.

Structural Characteristics

Tank: U-shaped or semi-countercurrent trough structure, lined with wear-resistant cast stone or rubber sheet
Spiral Options: Double or single spiral options with counter-rotating design to enhance cleaning performance
Power Transmission: Motor driven by cycloidal pinwheel reducer or hardened gearbox
Bearing Protection: Fully enclosed oil-bath bearing housing prevents slurry intrusion

Technical Specifications

Model	Screw Dia. (mm)	Screw Number	Feeding Size (mm)	Capacity (t/h)	Water Consumption (m³/h)	Motor Power (kw)	Overall Dimensions (mm)
XL-750	750	1	<10	20-40	9-60	7.5	70009501330
2XL-750	750	2	<10	50-70	18-120	2*7.5	700017501330
XL-1000	1000	1	<10	50-80	10-70	11	807012001638
2XL-1000	1000	2	<10	100-150	20-140	2*11	807022501638
XL-1200	1200	1	<20	100-120	20-140	18.5	907014301900
2XL-1200	1200	2	<20	150-180	40-280	2*18.5	907027001900
XL-1500	1500	1	<20	150-200	60-300	22	1080017201900
2XL-1500	1500	2	<20	200-300	120-450	2*22	1080033001900
XL-2000	2000	1	<20	250-320	160-460	37	1100022002100
XL-2400	2400	1	<20	320-400	200-620	45	1250027002200
