Name: Gold Cip Production Line
Brand: Zhengzhou Hengyang Industrial Co., Ltd
SKU: 금 채굴
Price: 65,350.00 USD
Availability: InStock

집 > 상품 > 금속공업 처리 라인 >

Gold Cip Production Line

gold CIP processing plant

metallurgy gold extraction line

CIP gold recovery system

원래 장소:

중국

브랜드 이름:

hengyang

인증:

ISO9001

모델 번호:

금 채굴

저희와 연락

인용 을 요청 하십시오

제품 세부 정보

OEM:

수용하다

상태:

새로운

보증:

12개월

애플리케이션:

록 골드

용법:

광물 채굴

지불 및 배송 조건

최소 주문 수량

가격

35000-95700USD/set

포장 세부 사항

부정

배달 시간

25-40 일

지불 조건

티/티

공급 능력

30 세트/월

Gold Processing Leaching CIL Plant

가장 좋은 가격 을 구하라

Rock Gold Ore Gravity Separation Processing Plant

가장 좋은 가격 을 구하라

We deliver more than just machinery; we provide a comprehensive, worry-free gold recovery solution from feed to final product. Based on the proven and efficient CIP (Carbon-in-Pulp) / CIL (Carbon-in-Leach) process, this 500-ton per day plant is engineered for large-scale operations, ensuring stable, high-yield, and effortless performance for our clients worldwide.

Working Principle: Maximizing Recovery Through Engineered Efficiency

The core of our plant lies in the "adsorption" and "elution" process. After fine grinding and cyanidation, the gold-bearing slurry flows through our optimized series of adsorption tanks. Here, activated carbon acts as the "gold hunter," efficiently capturing the gold-cyanide complex. The loaded carbon is then transferred to the elution and electro-winning system, where gold is stripped and deposited as high-purity sludge, ready for smelting into gold bars.

Recovery Rate: > 95%

Investment Return: 6-10months

A. Crushing and Screening
Raw ore is fed into a vibrating feeder and then crushed by a jaw crusher.

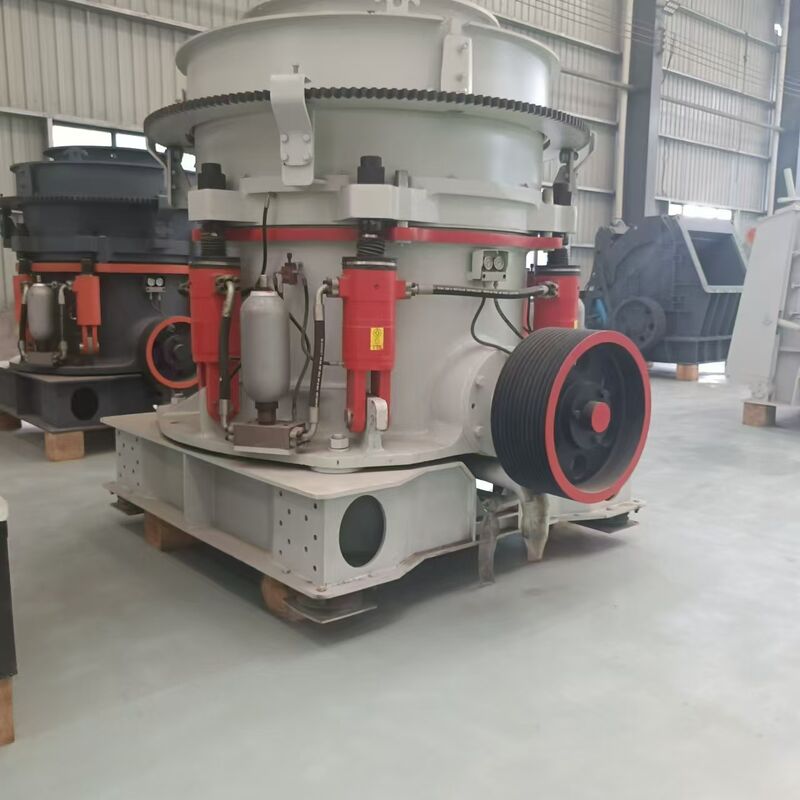

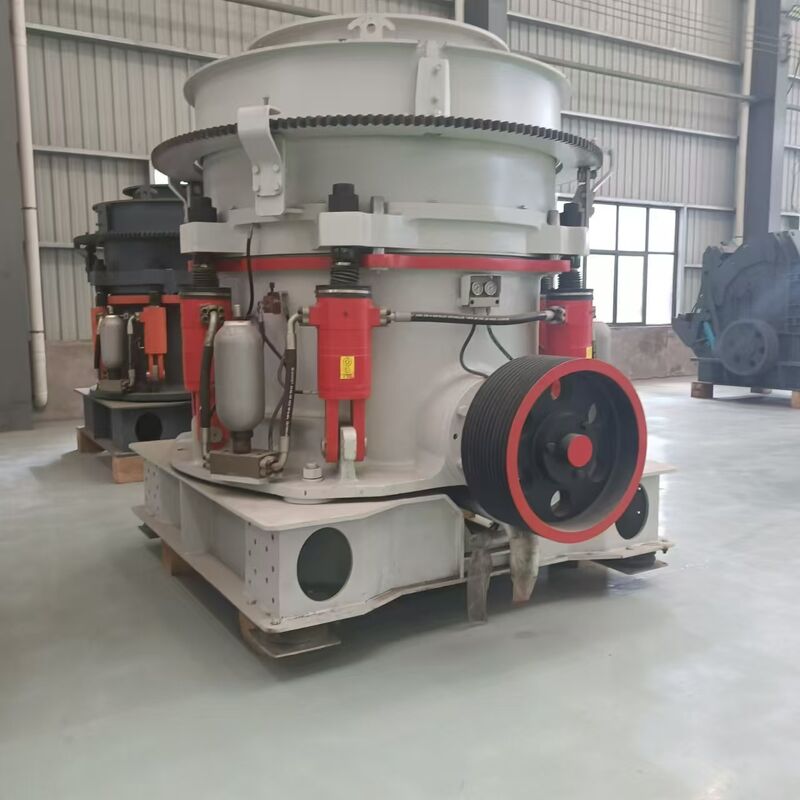

The crushed ore is further processed by cone crushers (coarse and fine crushing).
After crushing, the ore is screened, and oversize materials are returned to the crushers in a closed-circuit system.
B. Leaching and Adsorption
The slurry enters 8 leaching tanks. Sodium cyanide is added in the first tank, and activated carbon is added from the second to the eighth tank.
Gold is adsorbed by carbon through a counter-current flow system. Gold-loaded carbon is separated, cleaned, and sent to the desorption & electrolysis system.
C. Tailings Water Treatment
Tailings slurry is pumped to a filter press for solid-liquid separation.
* Solid tailings are discharged and transported to the yard
* Water is recycled back into the system
D. Gold-Loaded Carbon Treatment
Gold-loaded carbon is processed by desorption & electrolysis to produce gold dust.
The gold dust is smelted into gold bars in a melting furnace.
