원래 장소:
중국
브랜드 이름:
hengyang
인증:
ISO9001
모델 번호:
B형 컨베이어

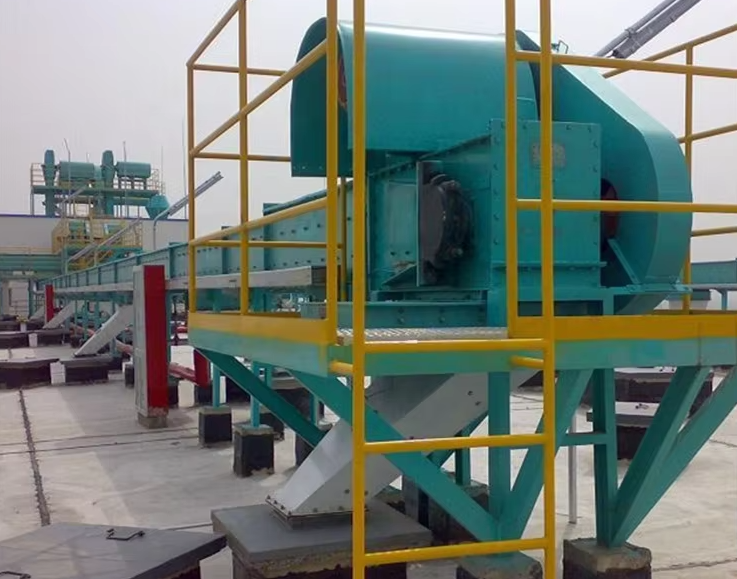

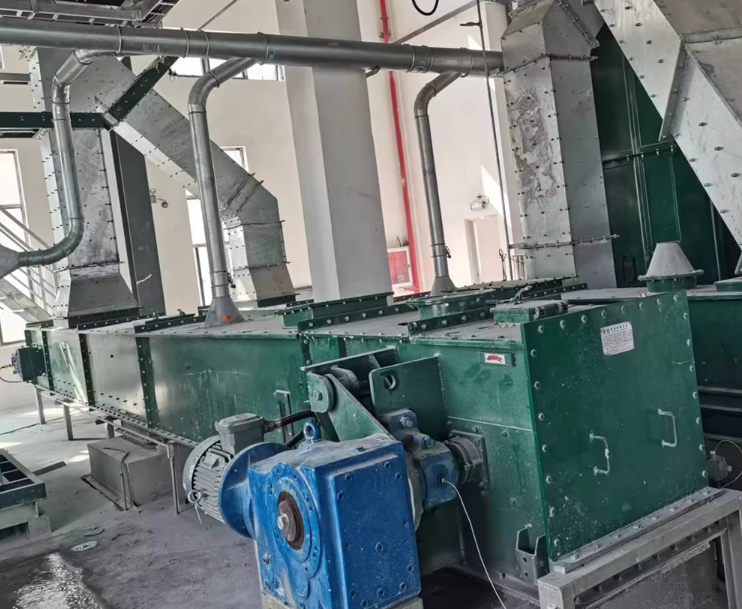

Drag Chain Conveyor is bulk material conveying equipment, which consists of head section with driving device, middle casing, tail section, tension device, as well as scraper chains. MS buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.
|
Technical Details
|
||||||
|
Type
|
MS16
|
MS20
|
MS25
|
MS32
|
MS40
|
|
|
Trough Width
|
160
|
200
|
250
|
320
|
400
|
|
|
Allowed Material Density Range
|
0.2-2.5t/m³
|
|||||
|
Max.Conveying Distance
|
120m
|
|||||
|
Conveying Capacity
|
speed m/s
|
0.16
|
0.16
|
0.16
|
0.16
|
0.16
|
|
capacity m³/h
|
15
|
23
|
36
|
59
|
83
|
|
|
speed m/s
|
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
|
|
capacity m³/h
|
18
|
29
|
45
|
74
|
104
|
|
|
speed m/s
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
|
|
capacity m³/h
|
23
|
36
|
56
|
92
|
130
|
|
|
speed m/s
|
0.32
|
0.32
|
0.32
|
0.32
|
0.32
|
|
|
capacity m³/h
|
29
|
46
|
72
|
118
|
166
|
|
