원래 장소:
중국
브랜드 이름:
hengyang
인증:
ISO9001
모델 번호:
B형 컨베이어

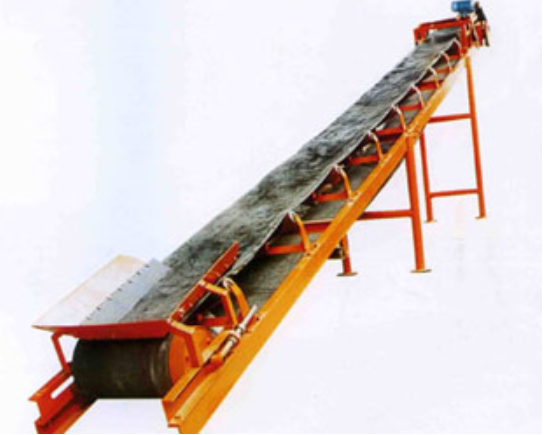

Belt Conveyor
Belt Conveyor is used to convey the loose and unit materials. All can be conveyed single or more machines ,according to the demands .As well as the conveyor system composition of the other conveyor equipments .That can meet all kinds of task .It is used in the scope that environment -45℃ to 46℃.the materials temperature less than 50℃.And it is widely used in mining ,metallurgy ,coal etc industries .
Working Principle Of Belt Conveyor:
When the Belt Conveyor is on operation ,through the friction between belt and transmission drum ,the belt then can move .From the loading point ,the materials is loading on the belt and then unloading from the unloading point.This can form the continuous logistics .Generally ,the materials are loading on the belt and then unloading from the transmission drum, as well as the special unloading equipment .
Characteristics Of Belt Conveyor:
Large delivery value ,simple structure ,convenient maintenance ,low cost and strong generality.
Technical Details:
| Belt Width (mm) |
Length(m) Power(kw) |
Speed (m/s) |
Production (t/h) |
||
| 500 | ≤12 3 |
12-20 4-5.5 |
20-30 5.5-7.5 |
1.3-1.6 | 78-191 |
| 650 | ≤12 4 |
12-20 5.5 |
20-30 7.5-11 |
1.3-1.6 | 131-323 |
| 800 | ≤6 4 |
6-15 5.5 |
15-30 7.5-15 |
1.3-1.6 | 278-546 |
| 1000 | ≤105 5 |
10-207 5-11 |
20-40 11-22 |
1.3-2.0 | 435-853 |
| 1200 | ≤107 5 |
10-20 11 |
20-40 15-30 |
1.3-2.0 | 655-1284 |
